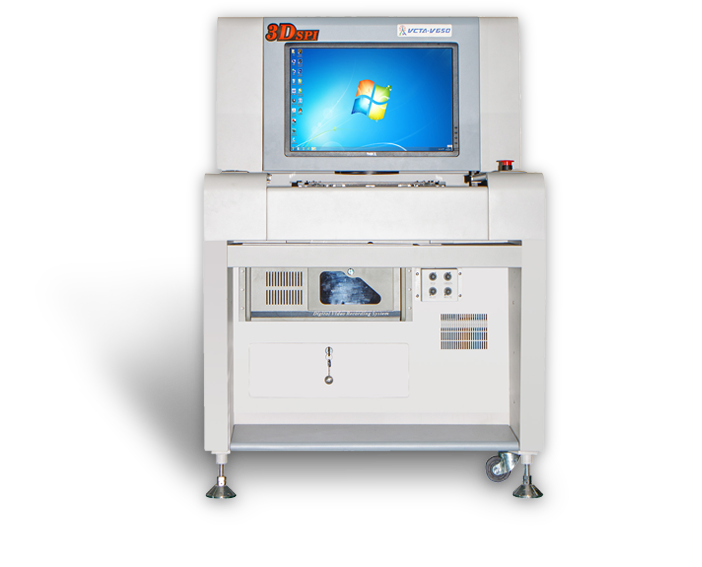

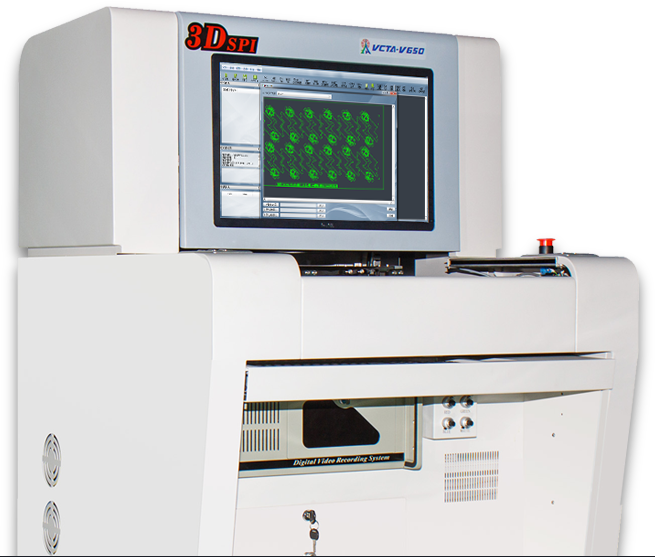

Phase measuring profilometry ( PMP ) based on the sinusoidal motion projection by structure grating,
the multiple images by discrete phase shift,
to calculate the phase distribution by multi- phase，the triangulation and so on to get the high-precision outline and volume of the object to be measured, shown in 3D true color.
In addditon to support the 3D solder paste inspection,our equipment can provide the red glue inspection that including missing print,excess glue,more glue,less glue, and also displays full-color poor point images,which makes it easy to locate. 。
No need Gerber or CAD file, out equipment can be programed only with a bare PCB. The software detect inspect-box automaticly, and users just need to change some box and parameters.
Using 3D plate bending compensation technology, the software can calculate the bending ratio in a FOV. No need to move Z axis, make moving and inspecting faster.
The camera can automatically identify the barcode ( 1D / 2D ) in the surface of PCB, easy to trace back the product quality.
The off-line programming software can remote programming by input Gerber or CAD data, the programmingtime is not more than 5 minutes.
Sometimes,the aperture in gerber file is not same as which in the stencil ,so we need change it as need ,include the postion 、size、shape、etc.
There is no mark in gerber file ,or bare board teach with no mark we support virtual mark ,which means you specify some pads to be virtual mark ,and through those you can specify the true marks.
0755-61519009/61519062
| CATEGORY | ITEM | SPECIFCATION | |
| Inspection system | Camera | Digital High Speed CCD 4M Pix | |
| Light | Ring R/G/B LED and White LED | ||
| FOV | 32mm*32mm(20μm） | ||
| Speed Per FOV | <0.6s | ||
| Detect |
Solder/Redgum: Volume、Area、Height、Shape、Shift、Bridge、Overflow |
||
| Defect | None、Shift、More、Less、Bridge、Pull、collapse、Shape、Goldfinger、Height、Overflow | ||
| Height Range | 30~400um | ||
| Area Range | 0.15mm×0.15mm~10mm×10mm | ||
| Height Accuracy on a Certificated Target | 1μm（基于实际锡膏与3D校正块） | ||
| Height/Area/Volume Repeatability on a Certificated Target | <1μm@3sigma | ||
| GR&R | <10% | ||
| Software | OS | Windows 7 | |
| Vision | Spec |
Single 3D Projection |
|
| UI | GUI/Easy use，support English/Chinese/Big5 | ||
| Result | 2D/3D true color | ||
| MARK | 2 Marks/Board or 2 Marks/Array, support badmark | ||
| Program | Gerber 274D/X、CAD，Offline program，Bare Board Teach | ||
| SPC | Offline SPC | Support | |
| Chart | Any Time Chart | ||
| Histogram/Control/Compare chart | Volume、Area、Height、Shift | ||
| Export | Excel、Jpg、Bmp | ||
| Mechanism System | PCB Transmit | Manual | |
| PCB Size | 25mmx25mm`300mmx400mm(可根据客户要求定制更大尺寸） | ||
| PCB Thickness | 0.3mm~3mm | ||
| Max PCB Warp | <1mm | ||
| X、Y Platform | Motion | Servo Motor Control | |
| Position Accuracy | <1μm | ||
| Speed | 700mm/s | ||
| Control | Computer | Industrial computer：Intel 4 core/8G DDR/1T HD |
|
| Display Output |
24 inch LCD |
||
| Others | Machine Dimensions | 90cmx106cmx135cm | |
| Weight | About 450 KG | ||
| Power Supply | AC220V±10%，50/60Hz，1200W | ||
| Environment | Temperature: 10-40℃，Humidity: 30-80%RH | ||
条码/二维码识别
坏点跳跃功能
统计报表导出
锡膏明细列表查询
PCB列表查询
PCB查询对比功能
NG分析功能
自动统计CPK功能
