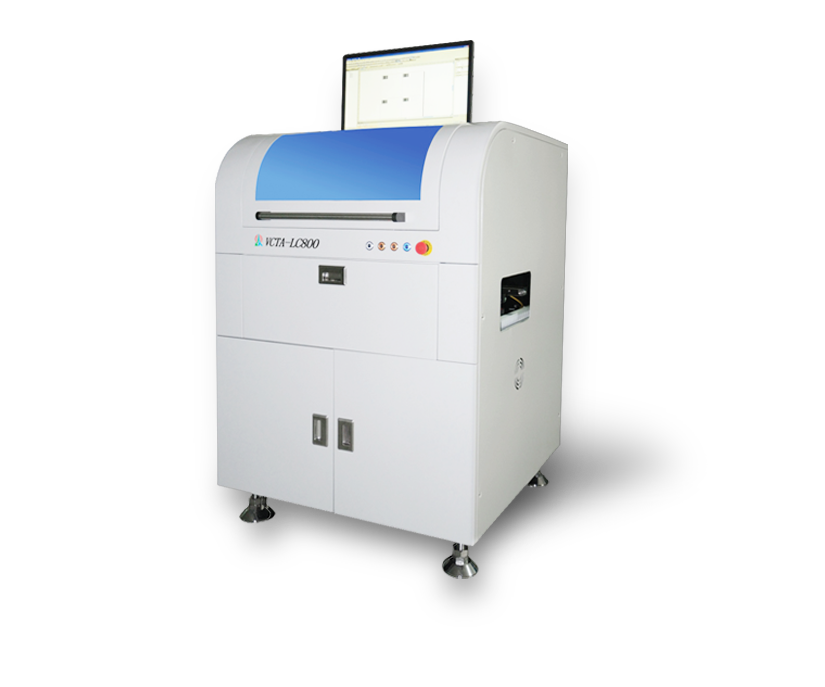

VCTA-LC800

工作流程

Intelligent high-speed CCD camera with TV industry lens
can accurate recognition and analysis of products characteristics
guarantee precision carving

Adjustable light source, suit for different background colors products

Precision orbit and control system

Precision orbit and control system，the track can automatically adjust the width（Max PCB size is: 330 x 250 mm， Thickness: 0.5 ～3 mm （special size can be customized)），double-side pneumatic control Pin，accurately product positioning and automatic open lock button，Thickness: 0.5 ～3 mm

Double guide screw for width adjusting, ensure orbit parallelism/ orbit width automatically adjus

Max PCB size is: 330 x 250 mm

Unique Z axis

Unique Z axis，Control by Japan imported servo motor and control precision guide screw。
Do great performance for different products freely adjusted for different height ，Making sure the precision of carving

Japan imported servo motor and control precision guide screw

X, Y axis adopt double sideways design
ensure the precision of long running condition

double sideways design

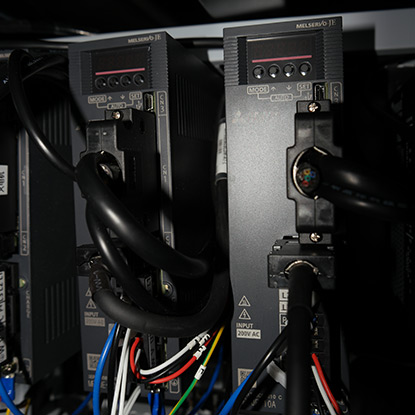

Imported PLC and servo control system
guarantying the precision of the control system

Japan imported servo motor and control precision guide screw

Inquiry online

0755-61519009/61519062

Types	Items	Specifications
Dimension（L×W×H）	1160×1040×1865 (including bottom and LCD)
Carve Sort	One dimensional code, qr code, Chinese, English, Number
To support the operating system	Windows XP, Win7, Win8
locate mode	Mechanical stop 、CCD + MARK position coordinates and adjustment
Online code reading function	CCD reading
PCB Size	Min.8080mm Max. 330250mm
PCB Tortuous Allowing	≤5mm
Repeatability Accuracy (GR&R)	＜10%
positional accuracy	±0.01mm
Working Method	Moving the LASER Head and fixing Board
Incoming recognition	To recognize the "reverse" and "wrong" board
Orbital Transfer Rate	50-3000mm/min
Response Speed	10ms
Capacity	1000 PCS/h for qr code signet (for example)

三维立体成像

三维立体成像是相位调制轮廓测量技术（PMP）基于结构
光栅正弦运动投影，离散相移获取多幅被照射物光场图像，
再根据多步相移法计算出相位分布，最后利用三角测量等方
法得到高精度的物体外形轮廓和体积测量结果。

真彩色的三维立体影像显示。

快速编程

快速编程是支持RS274-D、RS274-X格式的Gerber文件及
支持dxf格式的CAD文件，导入文件后自动创建焊盘信息，
只需设置检测参数即可完成编程。

全面详尽的SPC分析系统

SPC统计分析是利用统计方法对过程中的各个阶段进行过程控制，通过对测试信息的分析反馈，来促进前工序工艺的改良，以达到预防不良。操作者可以直观的通过饼状图或者柱形图等查看到测试信息的综合统计。

统计信息可以输出Html，Excel或Image等格式。

我们还有更多软件功能

条码/二维码识别

坏点跳跃功能

统计报表导出

锡膏明细列表查询

PCB列表查询

PCB查询对比功能

NG分析功能

自动统计CPK功能
