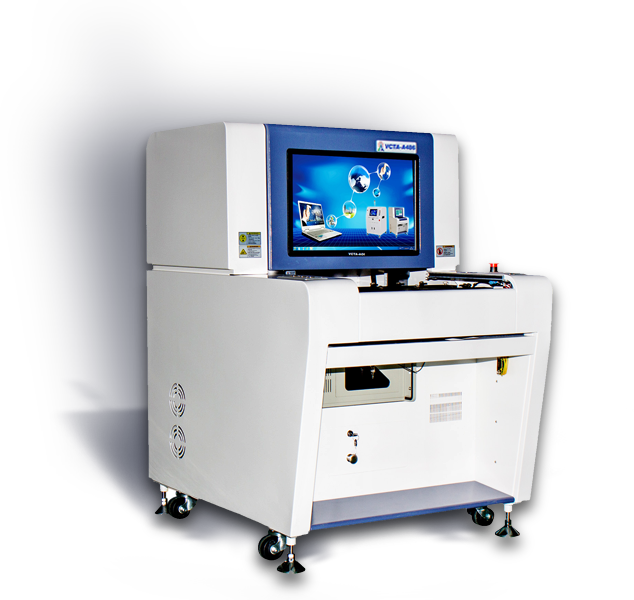

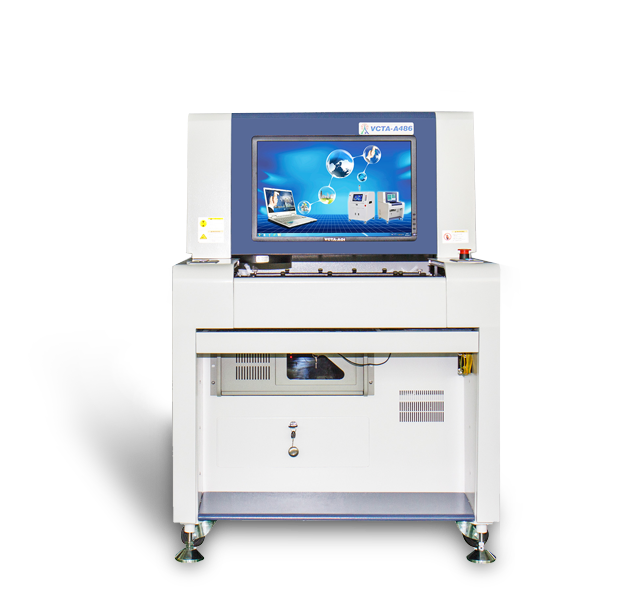

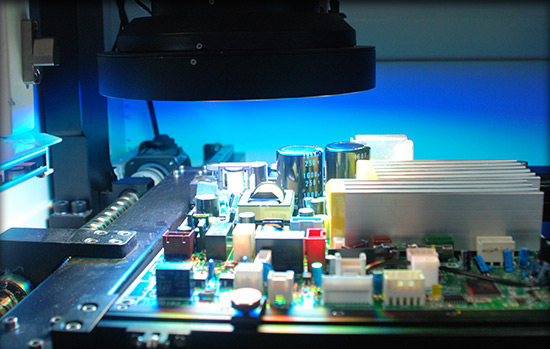

VCTA-A486

Easy to operate and multi-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality,
check component defects before reflow soldering, check PCBA quality after reflow soldering,
and DIP after wave soldering

Super high-pixels photography system ensures lowest lowest inspection judgment

Simple Weigh-win lmaging Difference Model technology (WIDM) can lessen the study time while programming;
Unique inspection shift of 2 sides of board (components top and bottom),auto software origin emendation;
Applied for mark point emendation for duplicated boards &barcod database and PCB bad mark recognition;
Creative OCR (Optical Character Recognition) function extends the area of AOI algorithm improves the judgment of mis-placement;
Share data among AOI internal network.

Intelligent color analysis technology

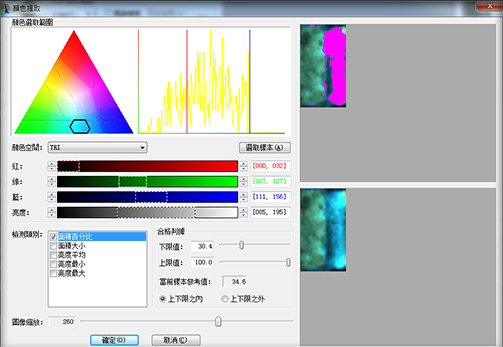

Using color extract and Analysis Technology (CPAT) can extract the object shape more correctly and gain highly precision of the inspection;
The application of multi-marks and multi-boards can be more adapted the demands of the production tests and give you many scene applications.

Color extract and Analysis Technology (CPAT)

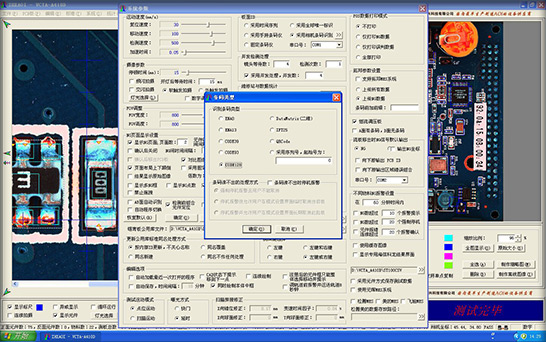

Barcode Reading

更为简化的权值调试功能，使编程不用学习或者更少学习；
独创的正反面自动识别，以及自动原点校正，打开了离线AOI自动化的新纪元；

Barcode Reading

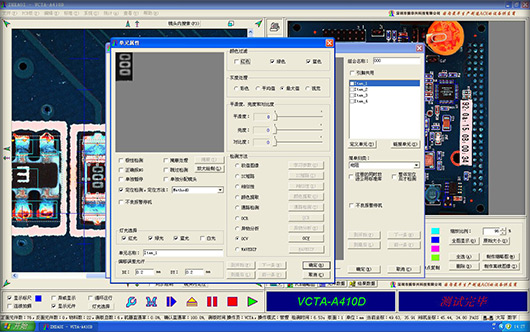

Components free combination

Many algorithms applications and combination with enhance the pass rate reduce the rate of misjudging greatly;
The components can combined freely make the template replace more easy and programming more quickly.

Components free combination

Dimensions of the machine

Inquiry online

0755-61519009/61519062

CATEGORY	ITEM		SPECIFICATION
RECOGNITION SYSTEM	INSPECTION		using multiple algorithms synthetically such as WIDM、Color Image contrast technology、Color extracting technology, similarity, binarization algorithm、OCR/OCV、shot test and so on.
	CAMERA		High-speed color camera: Resolution 12 um
	LAMP-HOUSE		Ring RGB LED lamp-house

	IMAGE PROCESSING SPEED	0201 CHIP	<7ms
	IMAGE PROCESSING SPEED	PER-IMAGE TIME	<120ms
	INSPECTION ITEMS	PASTE PRINTIG DEFECTS	Misaligned, overflow, insufficient, pasting open, stain
		COMPONENT DEFECTS	Missing, misaligned, skewed, tombstone, billboard, overtumed, reversed polarty, wrong, damaged
		SOLDER DEFECTS	Overflow, insufficient, short solder, stain

	ANTI STATIC MEASURES		Anti static electric outlet, anti static wreath
MECHANISM SYSTEM	PCB SIZE		25×25mm - 330×480mm, can make bigger size according to clients’ demands
	PCB THICKNESS		0.5mm - 2.5mm
	PCB WARP TOLERANCE		<2mm
	COMPONENT CLEARANCE		TOP≤25mm，BOTTOM≤50mm
	MINIMUM SPACE PARTS		0201 chip
	X、Y PLATFORM	DRIVER	AC server
		ORIENTATION	<15μm
		MOVING SPEED	700mm/s
SOFT SYSTEM	OPERATION SYSTEM		Microsoft Windows XP Professional
	CONTROLLING & RECOGNIZING	CHARACTERISTICS	Comprehensive application of various algorithms; Components standards set specific and targeted, low false positive; support the camera barcode recognition, automatic jump shield test
	CONTROLLING & RECOGNIZING	OPERATION	Graphic programming, take along with chip library and get a inspection frame according with chip shape, auurate position, micron adjust, and easy programming
	Mark	MARK NUMBERS	2marks can be chosen，panelize multi-mark function
	Mark	RECOGNISING SPEED	0.5s/pcs
CONTROLLER	COMPUTER		Industrial computer CPU:Intel dual-core, MEMORY:2G, HARDDISK:500G
CONTROLLER	DISPLAY		19 inch TFT(Option 22inch TFT)
OTHERS	MACHINE DIMENSIONS		86cm×96cm×125cm
	WEIGHT
	POWER SUPPLY		AC220V±10%, single phase 5A 50/60HZ, power consumption 600W, along with a unbreak power supply of UPS
